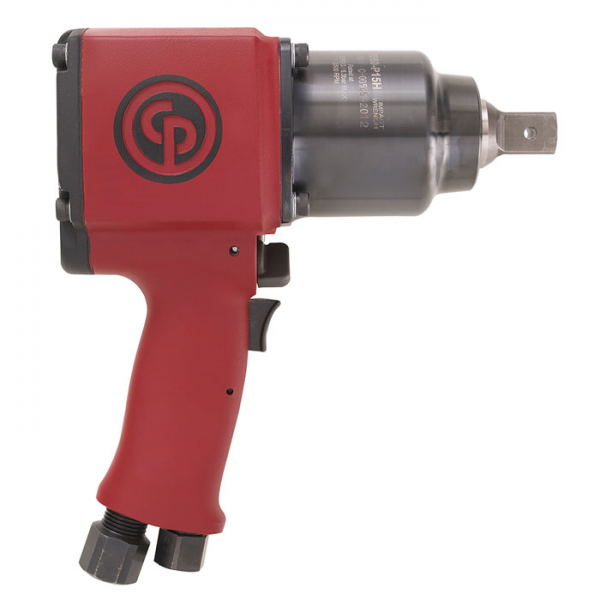

CP6060-P15H - 3/4" Super Industrial Impact Wrench - Chicago Pneumatic

New CP6060-P15H - 3/4" Super Industrial Impact Wrench - Chicago Pneumatic

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £1,508.00 + VAT

    Benefits

  • Market leading comfort thanks to the 2-Jaw clutch
  • Superior Quality resisting to worst conditions and usages
  • Best 3/4" impact for Industrial Maintenance and Production applications

    Features

  • Super Industrial 3/4" impact wrench
  • Reliable 2-jaw clutch
  • Aluminum body & steel clutch housing
  • Durable reverse valve & steel trigger
  • Compact 3-part construction & easy maintenance
  • Hole type socket retainer with O-ring for Safety
ModelCP6060-P15H
Handle typePistol
Square drive3/4"
Working Torque Range (fwd)270-1220 Nm200-900
Working Torque Range (fwd)200-900 ft.lbs270-1220
Maximum Torque (reverse)1490 Nm1100 ft.lbs
Maximum Torque (reverse)1100 ft.lbs1490 Nm
Free speed4000 rpm
Blows per minute1100
Net weight11.7 lb5.3 kg
Net weight5.3 kg11.7 lb
Power/weight ratio281.1 Nm/kg94 ft.lb/lb
Power/weight ratio94 ft.lb/lb281.1 Nm/kg
Length8.7"222 mm
Length222 mm8.7"
Side to center37 mm1 1/2"
Side to center1 1/2"37 mm
Actual air consumption52.9 cfm
Actual air consumption25 l/s52.9 cfm
Free speed air consumption74.1 cfm
Free speed air consumption35 l/s74.1 cfm
Air inlet thread size0.375 "
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Sound pressure92 db(A)
Sound Power103 db(A)
Vibration α (ISO-28927-2)13.9 m/s²
Vibration K (ISO-28927-2)4.1 m/s²
Socket retainerHole
Clutch type2-jaw clutch
Bolt sizeM27
Box dimensions295*295*115 11,6*11,6*4,5
Box dimensions11,6*11,6*4,5295*295*115
Over carton310*310*245 12,2*12,2*9,6
