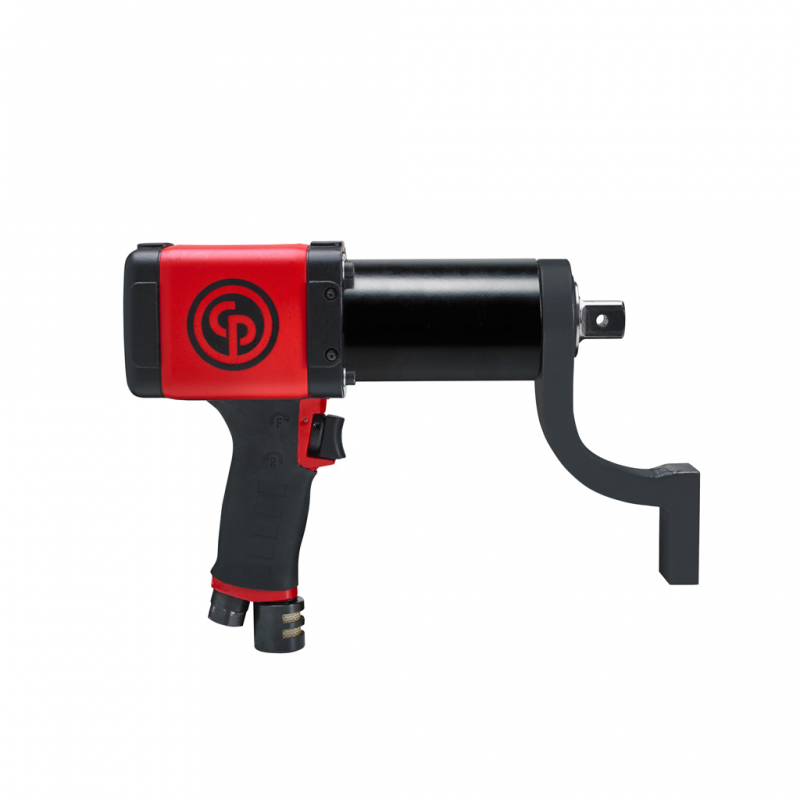

CP6613 3/4" Nutrunner - Chicago Pneumatic

New CP6613 3/4" Nutrunner - Chicago Pneumatic

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £3,335.00 + VAT

    Benefits

  • Robust
  • Accurate
  • Strong lightweight reaction arm
  • Lightweight

    Features

  • Replaceable protective cover
  • Reliable Gearbox: 13,000 cycles before maintenance
  • Vane type high performance air motor same as industrial impact wrench
  • High tightening accuracy: +/- 5 %
  • Different reaction arm types and shapes available
  • Reduce operator fatigue and risks of MSDs
ModelCP6613
Reaction barS-type
ReversibleReversible
Torque preset #Multi
Square drive3/4"
Handle typePistol
Free speed20 rpm
Working Torque Range (fwd)320-1300 Nm236-960
Working Torque Range (fwd)236-960 ft.lbs320-1300
Working Torque Range (reverse)320-1300 Nm236-960
Working Torque Range (reverse)236-960 ft.lbs320-1300
Maximum Torque (fwd)1300 Nm960 ft.lbs
Maximum Torque (fwd)960 ft.lbs1300 Nm
Maximum Torque (reverse)1300 Nm960 ft.lbs
Maximum Torque (reverse)960 ft.lbs1300 Nm
Weight Including Reaction Arm9.7 lb4.4 kg
Weight Including Reaction Arm4.4 kg9.7 lb
Weight w/o Reaction Arm8.3 lb3.8 kg
Weight w/o Reaction Arm3.8 kg8.3 lb
Length10"254 mm
Length254 mm10"
Side to center32 mm1.26"
Side to center1.26"32 mm
Free speed air consumption48 cfm
Free speed air consumption23 l/s48 cfm
Air inlet thread size0.375 "
Min. hose size13 mm
Sound pressure90 db(A)
Sound Power101 db(A)
Vibration α (ISO-28927-2)<2.5 m/s²
Socket retainerHole
Bolt size20-27 3/4-1-1/16
Bolt size3/4-1-1/1620-27
Box dimensions530x283x168 20,8x11,14x6,61


Tags: CP6613
