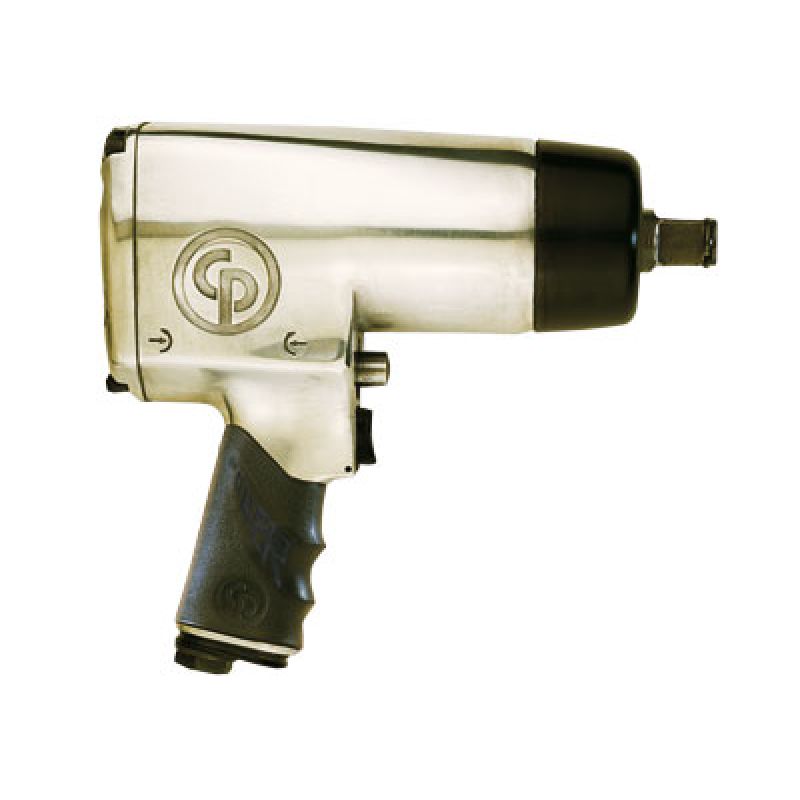

CP772H 3/4" Impact Wrench Classic Chicago Pneumatic

CP772H 3/4" Impact Wrench Classic Chicago Pneumatic

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £333.60 + VAT

    Benefits

  • General Maintenance
  • Smooth operation thanks to the DYNA-PACT clutch
  • Comfortable use thanks to low noise and vibration levels
  • Good durability

    Features

  • 3/4" impact wrench with ring retainer
  • DYNA-PACT oil bath clutch
  • Single handed reverse button with 4 settings of power
  • Comfortable handle grip
  • 360° air inlet swivel
ModelCP772H
Handle typePistol
Square drive3/4"
Working Torque Range (fwd)203-949 Nm150-700
Working Torque Range (fwd)150-700 ft.lbs203-949
Maximum Torque (reverse)1356 Nm1000 ft.lbs
Maximum Torque (reverse)1000 ft.lbs1356 Nm
Free speed4200 rpm
Blows per minute900
Net weight10.5 lb4.76 kg
Net weight4.76 kg10.5 lb
Power/weight ratio284.9 Nm/kg95.2 ft.lb/lb
Power/weight ratio95.2 ft.lb/lb284.9 Nm/kg
Length9.63"245 mm
Length245 mm9.63"
Average air consumption6 cfm
Average air consumption2.8 l/s6 cfm
Actual air consumption24 cfm
Actual air consumption11.3 l/s24 cfm
Air inlet thread size0.375 "
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Sound pressure96 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)4.9 m/s²
Vibration α (ISO-28927-2)5.8 m/s²
Vibration K (ISO-28927-2)2 m/s²
Socket retainerFriction ring
Clutch typePin clutch - Oil bath
