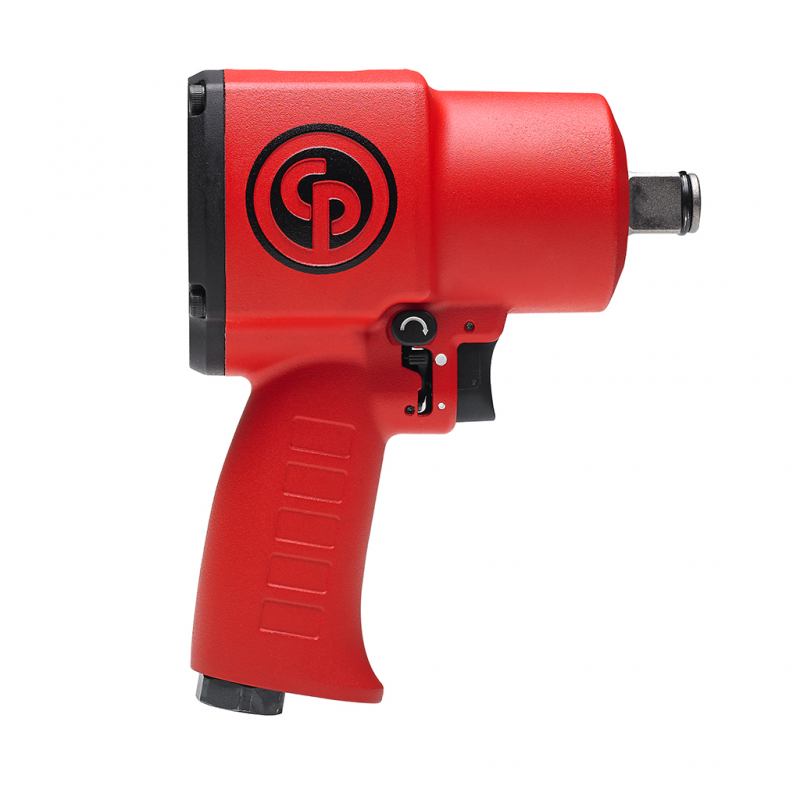

CP7762 Chicago Pneumatic 3/4" Stubby Impact Wrench

New CP7762 Chicago Pneumatic 3/4" Stubby Impact Wrench

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £273.00 + VAT

    CP7762 Benefits

  • ULTRA Compact
  • Lightweight
  • Powerful
  • Operator Comfort & Easy to handle
  • Hight Durability
  • Optimum Handle Design

    CP7762 Features

  • 6.2 in / 158.7 mm length for restricted working areas
  • 6.6 lbs. / 3.0 kg for less operator fatigue
  • 1050 ft.lbs / 1420 Nm in reverse for high productivity
  • Side2Side forward and reverse system
  • Full teasing trigger
  • One hand Forward & Reverse speed regulator button
  • Steel motor
  • Twin Hammer mechanism
  • Aluminum housing
  • Ergonomic P-handle with full teasing trigger
  • Perfect weight distribution
ModelChicago Pneumatic CP7762
Handle typePistol
Square drive3/4"
Working Torque Range (fwd)200-900 Nm150-670
Working Torque Range (fwd)150-670 ft.lbs200-900
Maximum Torque (reverse)1420 Nm1050 ft.lbs
Maximum Torque (reverse)1050 ft.lbs1420 Nm
Free speed4850 rpm
Blows per minute960
Net weight6.38 lb2.9 kg
Net weight2.9 kg6.38 lb
Power/weight ratio489.7 Nm/kg160 ft.lb/lb
Power/weight ratio160 ft.lb/lb489.7 Nm/kg
Length6.2"158 mm
Length158 mm6.2"
Side to center42 mm1.65"
Side to center1.65"42 mm
Average air consumption8.78 cfm
Average air consumption4.1 l/s8.78 cfm
Actual air consumption34.75 cfm
Actual air consumption16.4 l/s34.75 cfm
Free speed air consumption57 cfm
Free speed air consumption26.7 l/s57 cfm
Air inlet thread size0.375 "
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Sound pressure92.8 db(A)
Sound Power103.8 db(A)
Vibration α (ISO-28927-2)10.7 m/s²
Vibration K (ISO-28927-2)2.8 m/s²
Socket retainerFriction ring
Clutch typeTwin Hammer
Box dimensions235*206*97
