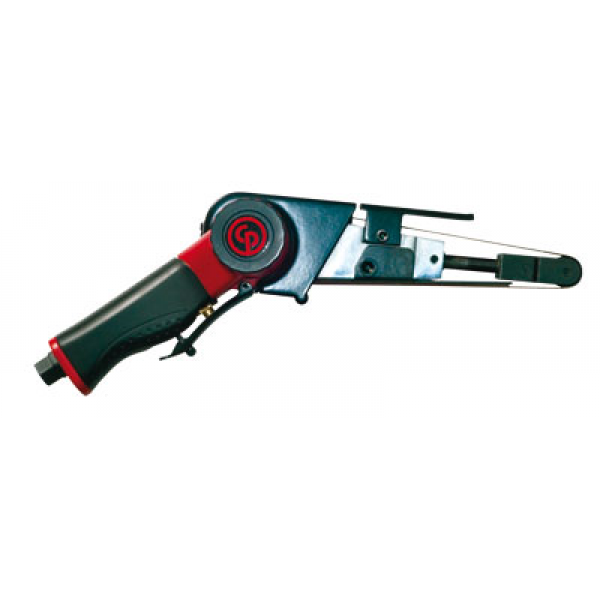

CP9780 20x520mm (3/4" x 20.4") Belt Sander Chicago Pneumatic

CP9780 20x520mm (3/4" x 20.4") Belt Sander Chicago Pneumatic

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £170.00 + VAT

    Benefits

  • Excellent for paint removal, smoothing and rust removal in limited space applications

    Features

  • Quick-change belt replacement
  • Rubber molded grip
  • Adjustable sanding arm
  • 3/4" (20 mm) capacity
  • Handle exhaust and swivel air inlet
ModelCP9780
Pad diameter20x520 3/4x20-1/2
Pad diameter3/4x20-1/220x520
Paper size20x520 3/4x20-1/2
Paper size3/4x20-1/220x520
Orbit diameter
Free speed20000 rpm
Power380 W0.51 hp
Power0.51 hp380 W
Height over spindle1 1/2"
Length380 mm15"
Length15"380 mm
Net weight1.5 kg3.3 lb
Net weight3.3 lb1 1/2 kg
Sound pressure90.5 db(A)
Sound Power101.5 db(A)
Vibration (ISO-8662-8)<2.5 m/s²
Vibration α (ISO-28927-3)<2.5 m/s²
Average air consumption7.1 l/s15 cfm
Average air consumption15 cfm
Actual air consumption14.1 l/s30 cfm
Actual air consumption849 l/mn30 cfm
Actual air consumption30 cfm849 l/mn
Free speed air consumption6.9 l/s14.6 cfm
Free speed air consumption14.6 cfm
Min. hose size10 mm3/8"
Min. hose size3/8"10 mm
Air inlet thread size0.25 "


Tags: CP9780
