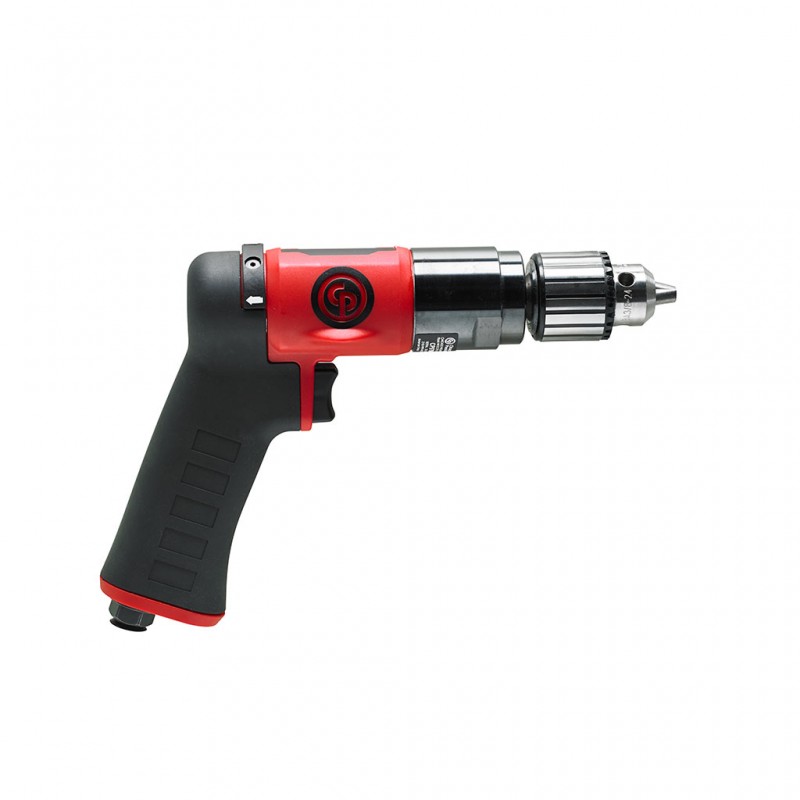

CP9790C 10mm (3/8") Reversible Pistol Drill Chicago Pneumatic

CP9790C 10mm (3/8") Reversible Pistol Drill Chicago Pneumatic

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £81.50

      Benefits

    • High Comfort
    • Ergonomics
    • Excellent Speed Control
    • High resistance to stalls
    • Great handling
    • Operator friendly
    • High durability
    • Supplied with high quality industrial Jacobs® chucks for longer use
    • - Keyed Metal


      Features

    • Composite housing with thermoplastic rubber handle grip
    • Wings on right & left sides to guide the forefinger
    • Large teasing trigger and progressive valve allowing more control to start holes
    • Low speed gear box
    • Flat back part for better pushing action while drilling and tapping
    • Reverse lever on the top for easier access
    • handle exhaust allowing the air to flow away from the operator
    • Supplied with high quality industrial Jacobs® chucks for longer use
    • - Keyed Metal
    • Excellent for drilling, honing, reaming and hole sawing

ModelCP9790 C
Chuck capacity10 mm3/8"
Chuck capacity3/8"10 mm
Collet / spindle size3/8-24
Free speed2000 rpm
Power270 W
Power0.37 hp
Stall torque3.5 ft.lbs4.8 Nm
Stall torque4.8 Nm3.5 ft.lbs
Net weight1.4 kg3 lb
Net weight3 lb1.4 kg
Length165 mm6.5"
Length6.5"165 mm
Average air consumption2.8 l/s6 cfm
Average air consumption169.8 l/mn6 cfm
Average air consumption6 cfm169.8 l/mn
Actual air consumption11 l/s24 cfm
Actual air consumption679 l/mn24 cfm
Actual air consumption24 cfm679 l/mn
Free speed air consumption11.5 l/s24.364406779661 cfm
Free speed air consumption24.364406779661 cfm
Air inlet thread size0.25 "
Min. hose size10 mm3/8"
Min. hose size3/8"10 mm
Sound pressure89 db(A)
Sound Power100 db(A)
Vibration (ISO-8662-6)<2.5 m/s²
Vibration α (ISO-28927-5)<2.5 m/s²
Vibration K (ISO-28927-5)- m/s²


Tags: CP9790C
