Benefits
· Reversible - the most polyvalent drill
· Versatile - for drilling, tapping and reaming operations
· High precision and comfortable handling
Features

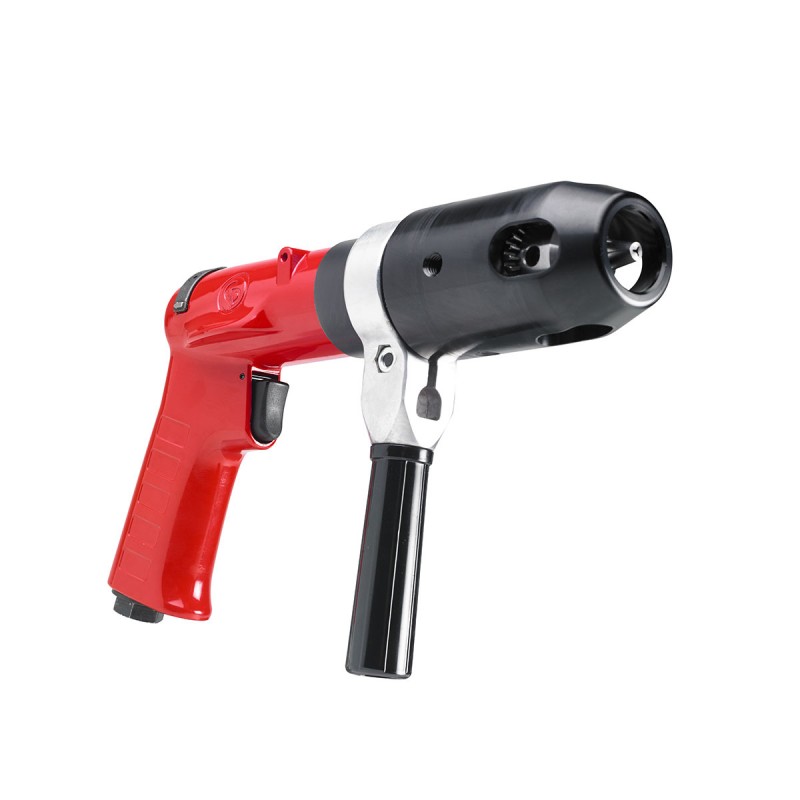

· A 500 rpm reversible drill for drilling, tapping and reaming in ATEX environments
· Equipped with side handle
· Fully caged with three planetary gears for perfect run-out
| Model | CP1114R05 ATEX | |
| Part number | 6151580380 | |
| Power | 410 W | 1/2 hp |
| Length | 278.1 mm | 10.9" |
| Net weight | 2 kg | 4.4 lb |
| Height | 151.7 mm | 5.9" |
| Width | 57.4 mm | 2.2" |
| Actual air consumption | 12 l/s | 25.5 cfm |
| Actual air consumption | 720 l/mn | 25.5 cfm |
| Free speed air consumption | 15 l/s | 32 cfm |
| Air inlet thread size | 1/4 " | |
| Min. hose size | 10 mm | 3/8" |
| Sound pressure | 82 db(A) | |
| Sound Power | 93 db(A) | |
| European Sound standard | ISO 15744 | |
| Sound uncertainty | 3 db(A) | |
| Vibration ISO | ISO-28927-5 | |
| Vibration | 2.6 m/s² | |
| Vibration uncertainty (K) | 1.1 m/s² | |
| Chuck capacity | 13 mm | 1/2" |
| Collet / spindle size | 3/8-24 | |
| Free speed | 500 rpm | |
| Stall torque | 25.2 Nm | 18.6 ft.lbs |
| European Directives | 2006/42/EC (17/05/2006) | |
| European Standards | EN ISO 11148-3:2012 | |
| ATEX code | II 2 G Ex h IIB T6 Gb X | |
| ATEX certificate number | 6159925450 / CE 8P07211 A | |
| Air inlet thread type | NPTF | |
