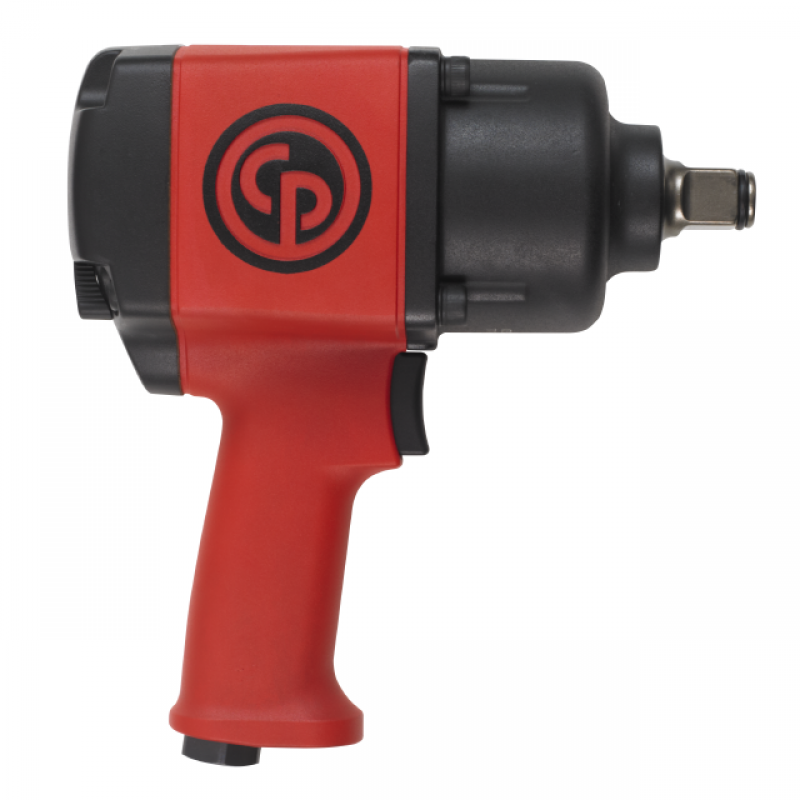

CP7763 Chicago Pneumatic 3/4" Impact Wrench

CP7763 Chicago Pneumatic 3/4" Impact Wrench
Click Image for Gallery
CP7763 Chicago Pneumatic 3/4" Impact Wrench

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £367.51
Add to Wish List Compare this Product

CP7763 3/4" Impact Wrench


    CP7763 Benefits

  • Powerful
  • Comfort & compact
  • Versatile
  • Best ratio price performance in its class

    CP7763 Features

  • 1500 Nm – 1100 ft / lbs
  • Well balanced minimizing wrist strain
  • Handle fits perfectly in the hand
  • Suited for all maintenance applications
  • - Vans & Heavy vehicles mechanical repair
  • - MRO applications
ModelCP7763
Handle typePistol
Square drive3/4"
Working Torque Range (fwd)136-1288 Nm100-950
Working Torque Range (fwd)100-950 ft.lbs136-1288
Maximum Torque (reverse)1630 Nm1200 ft.lbs
Maximum Torque (reverse)1200 ft.lbs1630 Nm
Free speed6300 rpm
Blows per minute900
Net weight11.57 lb5.25 kg
Net weight5.25 kg11.57 lb
Power/weight ratio310.5 Nm/kg103.7 ft.lb/lb
Power/weight ratio103.7 ft.lb/lb310.5 Nm/kg
Length8.8"229 mm
Length229 mm8.8"
Side to center45 mm1.8"
Side to center1.8"45 mm
Average air consumption7.5 cfm
Average air consumption3.5 l/s7.5 cfm
Actual air consumption30 cfm
Actual air consumption14.2 l/s30 cfm
Air inlet thread size0.375 "
Min. hose size13 mm1/2"
Min. hose size1/2"13 mm
Sound pressure96 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)9 m/s²
Vibration α (ISO-28927-2)10.4 m/s²
Vibration K (ISO-28927-2)4.2 m/s²
Socket retainerFriction ring
Clutch typeTwin hammer
