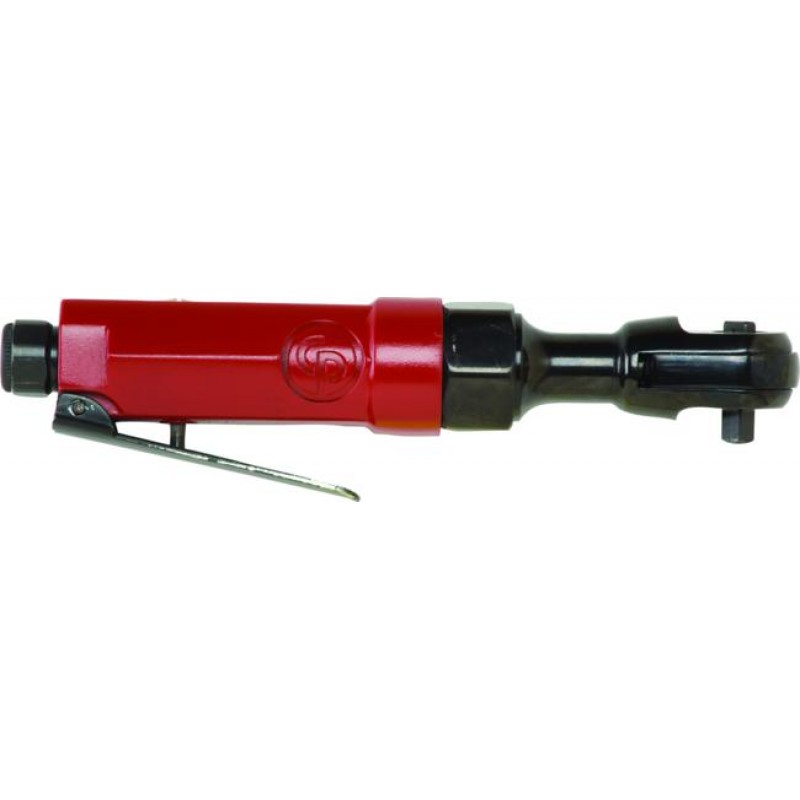

CP824 Chicago Pneumatic 1/4" Ratchet Wrench

2 - 3 Days CP824 Chicago Pneumatic 1/4" Ratchet Wrench

Free Shipping Orders Over £250

UK Mainland Deliveries

All Prices Exclude VAT

  • £76.37

CP824 1/4" Ratchet Wrench


CP824 Features

  • 1/4" standard duty ratchet
  • Easy speed control
  • Extended length

CP824 Benefits

  • Compact and lightweight
  • Designed for greater reach in confined areas
  • Excellent for under-dashboard work, small engine repair and small fasteners
ModelCP824
Square drive1/4"
Working torque Range5-17 Nm4-12,5
Working torque Range4-12,5 ft.lbs5-17
Max torque17 Nm12.5 ft.lbs
Max torque12.5 ft.lbs17 Nm
Free speed220 rpm
Net weight1.13 lb0.51 kg
Net weight0.51 kg1.13 lb
Length7.75"197 mm
Length197 mm7.75"
Average air consumption3.75 cfm106 l/mn
Average air consumption106 l/mn3.75 cfm
Average air consumption1.8 l/s3.75 cfm
Actual air consumption15 cfm425 l/mn
Actual air consumption425 l/mn15 cfm
Actual air consumption7 l/s15 cfm
Air inlet thread size0.25 "
Min. hose size3/8"10 mm
Min. hose size10 mm3/8"
Sound DBA pressure102 db(A)
Sound pressure91 db(A)
Vibration (ISO-8662-7)8,1 m/s²
Vibration α (ISO-28927-2)4.1 m/s²
Vibration K (ISO-28927-2)2 m/s²
